Installing top-hung sliding door hardware requires precise structural evaluation, accurate physical measurements of the door slab, and careful calculation of clearances. Unlike bottom-rolling systems, a top-hung sliding door suspends its entire weight from an overhead track. This means you must verify that your wall or ceiling header can support the dynamic load, measure the door’s exact thickness, height, and weight to match the hardware kit’s rated capacity, and calculate the necessary vertical and side clearances to ensure smooth operation without dragging or scraping.
Taking the time to prepare your space before purchasing any components prevents costly installation errors and structural failures. A sliding door that is too heavy for its track can sag, damage your wall, or even fall, posing a serious safety hazard. Conversely, incorrect clearance measurements can result in a door that scrapes against the floor, fails to cover the opening completely, or leaves wide gaps that compromise privacy and sound isolation. By following a systematic measurement and preparation process, you can ensure a secure, functional, and aesthetically pleasing installation.
Evaluating Header Structural Integrity and Support
The most critical step in preparing for a top-hung sliding door installation is assessing the structural integrity of the wall or ceiling area directly above the opening. Because the entire weight of the door slab hangs from the upper track, a standard drywall partition without internal reinforcement is insufficient. You must determine whether the mounting location features a load-bearing header or a non-load-bearing wall partition that requires additional support.

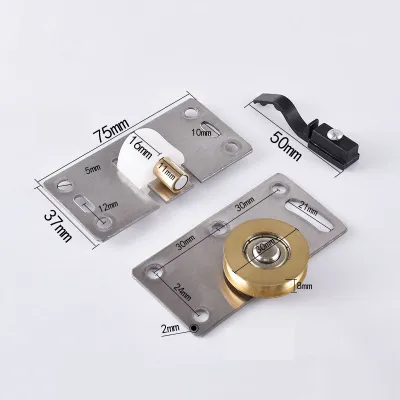

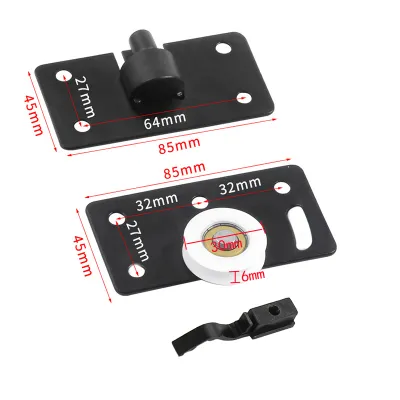

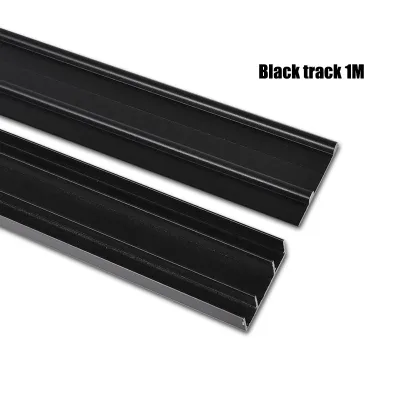

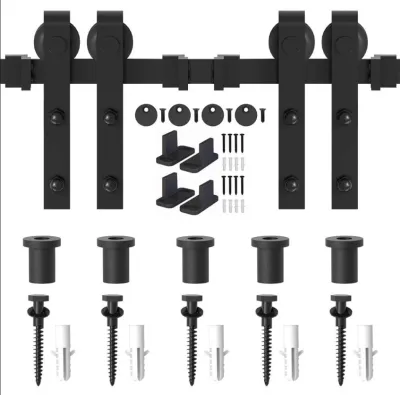

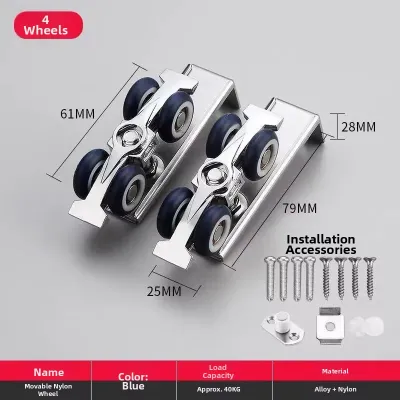

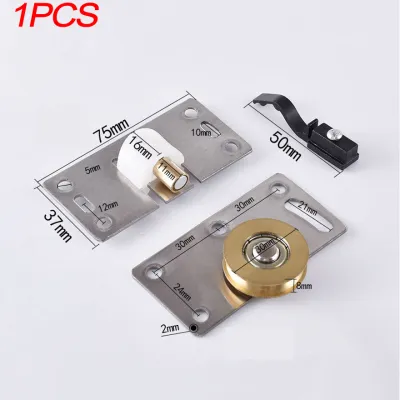

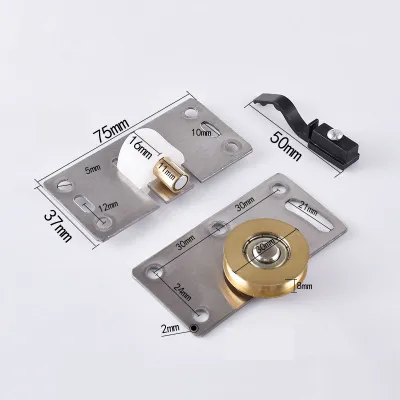

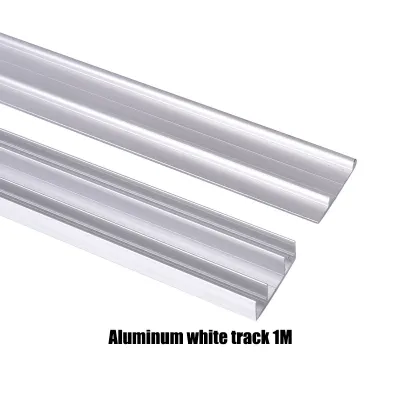

Products mentioned in this guide
1,741 Lazada user ratings
I ordered A 200cm double, but inclusions were incomplete. Floor door guide only 1pc. Upper guide only 2 pcs. Should be 4 pcs each. Pls check…Read full reviewShow less
I ordered A 200cm double, but inclusions were incomplete. Floor door guide only 1pc. Upper guide only 2 pcs. Should be 4 pcs each. Pls check the required inclusion items and send missing items. OR I will return the parcel. Lazada pls advise if I should return the parcel.
Easy installation process, Beautiful black powder-coated surface, Smooth and quiet sliding operation, High-quality carbon steel material, St…Read full reviewShow less
Easy installation process, Beautiful black powder-coated surface, Smooth and quiet sliding operation, High-quality carbon steel material, Sturdy and durable sliding door hardware, Long-lasting and resistant to corrosion,
High-quality carbon steel material, Perfect for kitchen and living room doors, Can support heavy doors up to 100kg, Adds a rustic touch to a…Read full reviewShow less
High-quality carbon steel material, Perfect for kitchen and living room doors, Can support heavy doors up to 100kg, Adds a rustic touch to any room, Easy installation process,
Ease of Installation:10/10 very easy to install Durability:10/10 very durable Security:10/10 it holds the door firmly
fast delivery. mukhang matibay nmn dpa na install kung ok at kung kumpleto mga piyesta.. maganda cya
260 Lazada user ratings
Provides a smooth and effortless sliding experience., Easy installation and maintenance., Durable aluminum alloy construction.,
Easy installation and maintenance., Thickened wear-resistant door wheel for added durability., Great value for money.
The products are of good quality and inclusions are complete, the packaging is not secured, and delivery is fast.
thanks seller and Lazada dumating na ung order ko ngayon lng nakapag-review okay ito maayos naman ng maikabit ko
🏅Material Quality:ok but I dont know how they handle this totaly deformed
227 Lazada user ratings
Versatile black track, Convenient closet solution, Easy to install, Classic white track, Stylish black pulley, Smooth sliding doors, Conveni…Read full reviewShow less
Versatile black track, Convenient closet solution, Easy to install, Classic white track, Stylish black pulley, Smooth sliding doors, Convenient closet solution, Classic white track, Smooth sliding doors, Easy to install,
Ang packaging ay napakahusay, walang pagpapapangit, ito ay medyo simple upang i install sa pamamagitan ng iyong sarili, at ang pangunahing l…Read full reviewShow less
Ang packaging ay napakahusay, walang pagpapapangit, ito ay medyo simple upang i install sa pamamagitan ng iyong sarili, at ang pangunahing laki ay angkop
Sleek and modern appearance, Excellent customer service, Durable and sturdy design, Versatile use for wardrobe or drawer,
Excellent customer service, High-quality aluminum alloy material, Versatile use for wardrobe or drawer,
77 Lazada user ratings
Maganda at mulhang matibay to. Mahilis then naideliver ng Ninja Van.
salamat seller kopleto
Not yet installed
Good and perfect
93 Lazada user ratings
i receive the guide bakit hinati sa gitna? and bakit walang kasama na 4pcs na rollers.
Ease of Installation:good Durability:good Security:good
Sturdy wardrobe support, Silent nylon pulley,
🛠️Durability:good
40 Lazada user ratings
🛠️Durability:good 🏅Material Quality:good 🔧Ease of Installation:good buti meron nito online, out of stock na sa wilcon nito
🏅Material Quality:8 out of 10 also screw not included
Smooth sliding motion, Durable cold-rolled steel,
🏅Material Quality:7 out of 10
542 Lazada user ratings
Ideal for wardrobe use, Silent operation sound, Easy to install track, Black coating finish, Long-lasting performance, Long-lasting performa…Read full reviewShow less
Ideal for wardrobe use, Silent operation sound, Easy to install track, Black coating finish, Long-lasting performance, Long-lasting performance,
Black coating finish, Easy to install track, Easy to install track, Silent operation sound, Long-lasting performance,
Easy to install track, Ideal for wardrobe use, Silent operation sound, Easy to install track, Black coating finish,
ayoss always kumpleto. kaya order ulit pag naubos ulit. salamat sa seller at rider solid lage rider dito samin.
very fast delivery good quality items durable materials
Prices are valid at publication and may change. Please refer to the product page for the latest price.
To safely mount the track, verify what lies behind the drywall or plaster surface. Solid wooden studs, concrete beams, or heavy-gauge steel framing are necessary to anchor the mounting screws. On a standard drywall wall, you cannot rely on drywall anchors; the track must fasten directly into solid wood framing or a dedicated header board. A header board, typically a solid piece of hardwood timber, can be securely screwed into the wall studs first, providing a continuous, flat, and stable surface to mount the sliding track.
Always check the hardware manufacturer’s structural requirements before beginning. Different track designs and door weights demand different levels of support. If your wall consists of hollow metal studs, lightweight plaster, or lacks a solid wood header, stop the installation. In these scenarios, consult a qualified structural professional to install proper blocking or reinforce the header before proceeding.
Measuring Door Dimensions and Weight for Hardware Matching
Selecting the correct sliding door hardware kit depends entirely on the physical characteristics of the door slab. You must obtain precise measurements of the door’s thickness, height, and width before choosing hardware. Standard kits accommodate specific ranges of door thicknesses; using an incompatible slab can prevent the rollers from aligning or cause the door to rub against the wall.
Begin by measuring the door thickness with a tape measure or caliper to ensure it falls within the compatible range listed on the hardware packaging. Next, measure the height and width of the door slab. These dimensions dictate the track length. As a general rule, the track length should be at least twice the width of the door slab to allow the door to slide completely clear of the opening.
Equally important is calculating the total weight of the door slab, including the raw material and any added components like glass panels, decorative metal overlays, or large handle pulls. Weighing the door slab or estimating its weight based on material density is crucial because every hardware kit has a strict rated weight capacity. Exceeding this limit can cause the track to bend, the rollers to wear out prematurely, or the assembly to fail.
Calculating Clearances, Track Placement, and Floor Gaps
Proper clearance calculations prevent the sliding door from binding against the wall, scraping the floor, or leaving unsightly gaps. First, determine the vertical header clearance, which is the flat, unobstructed wall space required above the opening to mount the track and accommodate the roller hangers. This dimension varies significantly between hardware styles, so refer to the specific kit’s manual to find the minimum clearance required.
Side clearances are vital for ensuring privacy and light control. When closed, the door should overlap the opening on both sides to prevent direct lines of sight. Measure the width of the finished opening and compare it to the door slab width to calculate this overlap. A standard recommendation is to have the door overlap the opening by at least 25 to 50 millimeters on each side, depending on your privacy needs.
Finally, establish the appropriate bottom floor gap to allow the door to slide smoothly without dragging. When calculating this space, account for flooring transitions, thick rugs, or any unevenness along the entire path of the door’s travel. The bottom guide, which keeps the door from swinging outward, also requires specific clearance. Ensure you leave enough space at the bottom—typically between 10 and 15 millimeters—to accommodate both the guide and floor level variations.
Essential Tools and Pre-Installation Preparations
Before mounting any hardware, gathering the correct tools and preparing the workspace will streamline the process and protect your home. You will need a reliable tape measure, a long spirit level or laser level, a stud finder, a drill with appropriate bits, and a socket wrench or screwdriver. Using a level is non-negotiable; even a slight tilt in the track will cause the sliding door to roll open or closed on its own.
Preparing the physical environment is just as important as having the right tools. Clear the immediate workspace of furniture and obstacles to give yourself ample room to maneuver the long track and heavy door slab. Lay down drop cloths or protective cardboard to shield your flooring from falling debris, metal shavings, or dropped tools during drilling and mounting.
Before drilling any holes into the wall or ceiling, verify the absence of hidden hazards. Use a multi-scanner or consult your home’s architectural plans to check for electrical wiring, plumbing pipes, or HVAC ducts behind the mounting surface. Accidentally drilling into a live wire or water pipe can cause severe injury, expensive property damage, and significant project delays.
Deciding Between DIY and Professional Installation
Installing top-hung sliding door hardware can be a rewarding DIY project, but it requires an honest assessment of your skills and physical capabilities. Consider whether your installation requires structural modifications. If you need to cut into drywall to add solid wood blocking, reinforce a non-load-bearing partition, or install a heavy header board, these tasks often require advanced carpentry skills and specialized tools.
The physical demands of the project should also influence your decision. Sliding door slabs, especially those made of solid hardwood, iron, or thick glass, can be extremely heavy and awkward to handle. Lifting, aligning, and mounting these heavy slabs onto an overhead track safely requires at least two people. Attempting to hang a heavy door alone increases the risk of personal injury or damage to the door and surrounding walls.
Recognizing the limits of your tools and experience is key to a successful project. If you feel uncertain about locating studs, leveling a long track, or calculating precise clearances, stop and seek professional assistance. Hiring a qualified carpenter or handyman ensures that the hardware is installed safely, operates smoothly, and complies with local building practices, saving you time and potential frustration.
Frequently Asked Questions (FAQ)
Can I install top-hung sliding door hardware directly on a drywall ceiling?
No, you should never install top-hung sliding door hardware directly onto a drywall ceiling without structural support. Drywall alone cannot support the continuous static and dynamic weight of a hanging door, and attempting to do so will cause the anchors to pull through, resulting in the door falling. The mounting track must be anchored securely into solid ceiling joists or structural beams. If the joists do not align with your desired track location, you must consult a qualified contractor to install structural wood blocking behind the drywall to provide a secure mounting point.
How much extra width should the door have compared to the rough opening?
To ensure adequate privacy, minimize light gaps, and provide a clean look, the door slab should be wider than the finished opening. Most manufacturers recommend that the door overlap the opening by at least 25 to 50 millimeters on each side. To find the ideal door width, measure the exact width of your finished opening and add the desired overlap for both sides. Always check your specific hardware manufacturer’s manual, as some specialized track systems or flush-mount designs may have unique overlap requirements to function correctly.
