Calculating the required load capacity for your awning brackets is a critical step in ensuring your outdoor shade remains secure, stable, and safe. To find this value, you must determine the combined weight of the awning’s physical components—known as the dead load—and add the temporary forces exerted by wind and rain, known as the dynamic or environmental load. Once you have this total weight, you divide it by the number of mounting brackets and apply a professional safety factor. Skipping this calculation or guessing the requirements can lead to bracket deformation, wall damage, or a complete structural collapse during severe weather.
A successful installation relies on precise measurements rather than assumptions. By taking the time to gather manufacturer specifications and assess your local environmental conditions, you can select hardware that easily handles both daily stress and unexpected weather events. This guide walks you through identifying component weights, factoring in dynamic environmental forces, executing the step-by-step calculation, and verifying your wall mounting conditions.
Identify All Awning Components and Their Weights
Before picking up any tools or purchasing hardware, you must compile a complete inventory of every physical component that makes up your awning system. This inventory represents the static dead load, which is the constant weight the brackets must support every second of the day. A standard awning setup consists of several distinct parts, including the main support frame, the fabric canopy, the front bar, the valance, and any integrated manual or motorized operating mechanisms. If your awning features an electric motor, internal gearboxes, or heavy metal roller tubes, these components add concentrated weight that must be factored into your final sum.

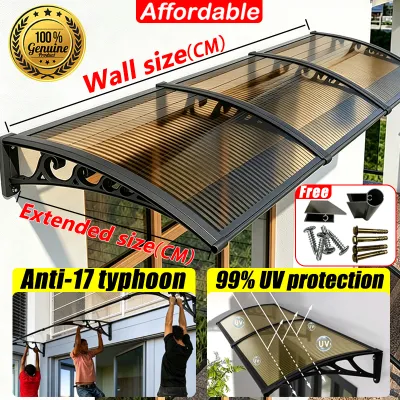

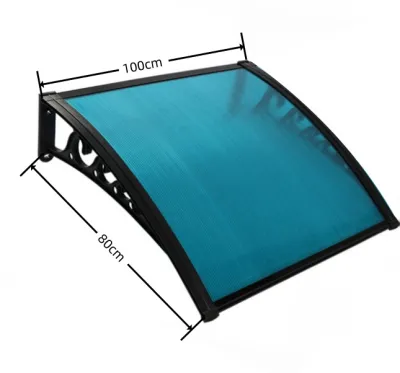

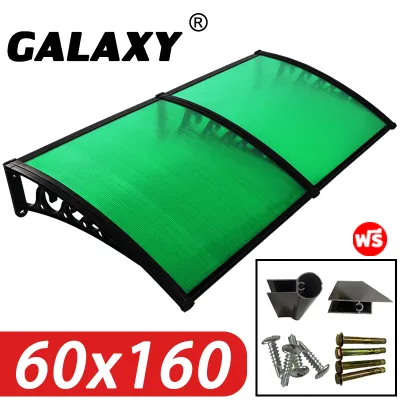

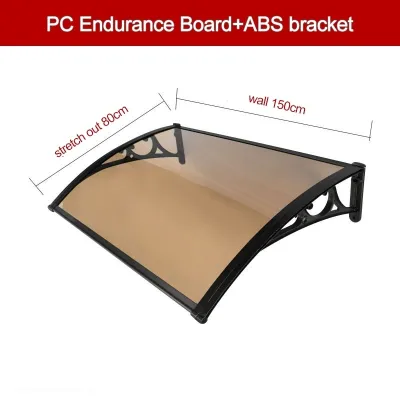

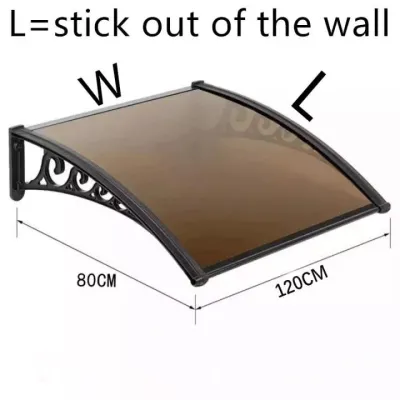

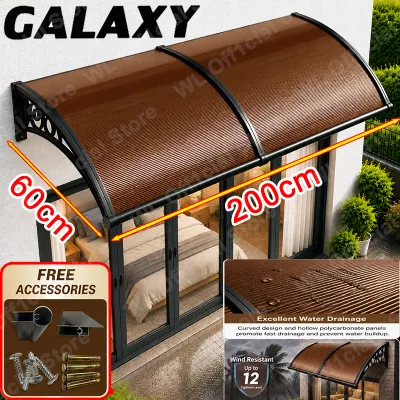

Products mentioned in this guide
3 Lazada user ratings
this is crap.
107 Lazada user ratings
tiiiihn buu.hhuibb hhgfi hioob jooonh hgdfuk jjiib hjjjb hhjok jiii ggggi uiii uuiib hjjjb hjjib jjjkk jjkobhjjj.jjjjj hjjii hhjooob hjiob
My item was delivered maybe 2 weeks ago, at ngyon lng namin nabuksan pero kulang ng isang arm dapat at 3 can you send me one of it.
Very useful. Also very beautiful. But the screws provided are large, but they are large, strong and durable.
one of the bracket is missing can you send the mussing bracket it supposed to be 3 pcs.
Durable polycarbonate, UV protection, easy to install
98 Lazada user ratings
My order was excellent but the delivery was disgusting. The rider of J&t first attempt stated was a faikure due to the client ask for a re s…Read full reviewShow less
My order was excellent but the delivery was disgusting. The rider of J&t first attempt stated was a faikure due to the client ask for a re schedule whereiin I didnlt ask for one, He posted a proof of delivery, a convo with someone which is not me. He didn’t send a message . I was at home the whole day waiting for my delivery. The rider is Jayson Panimdim, don’t put the blame to me if you can’t deliver
🛠️Durability:good 👜Portability:good 🛠Ease of Setup:good panagalawa ko order,,ok pa din Naman maliban dun sa kulang na Isang set Ng expansion …Read full reviewShow less
🛠️Durability:good 👜Portability:good 🛠Ease of Setup:good panagalawa ko order,,ok pa din Naman maliban dun sa kulang na Isang set Ng expansion bolt,,nalaglag siguro sa delivery at Yung delivery di din Naman maingat,nayupi Yung pinaka bubong pero di Naman sira at pwede pa makabit..dagdagan na lang siguro Ang support sa packaging,dahil malambot lang Ang pinaka bubong.
🛠️Durability:good 👜Portability:good 🛠Ease of Setup:good mabilis delivery at maayos Naman at walang damage,kumpleto at walang kulang,mura at p…Read full reviewShow less
🛠️Durability:good 👜Portability:good 🛠Ease of Setup:good mabilis delivery at maayos Naman at walang damage,kumpleto at walang kulang,mura at parang mamahalin Naman ,,matibay at elegante tignan.
Ok po magandacat walang damagecty seller,lazada at courier.
All goods ang order ko ty seller sa uulitin
48 Lazada user ratings
softer type of fiberglass,good for the door
good quality thank you seller ⭐⭐⭐⭐⭐
🛠️Durability: good goods
sakto ok n ok
363 Lazada user ratings
Easy to install and foldable for convenience., The frame adds stability and support., Provides excellent sun protection., Waterproof and per…Read full reviewShow less
Easy to install and foldable for convenience., The frame adds stability and support., Provides excellent sun protection., Waterproof and perfect for rainy days.,
Provides excellent sun protection., Anti-UV material ensures long-lasting use., Easy to install and foldable for convenience., Perfect for s…Read full reviewShow less
Provides excellent sun protection., Anti-UV material ensures long-lasting use., Easy to install and foldable for convenience., Perfect for shading your balcony.,
Plastic material I hope it will last longer.Provides excellent sun protection., Perfect for shading your balcony.,
awesome, I like it very very much, hope it will last for 20 years thanks
Item as described
914 Lazada user ratings
High-quality materials used, Versatile and adjustable size options, Weather-resistant and long-lasting, Perfect for parties and gatherings,
I am very happy with the product and the quick delivery, the price is good and I think it is durable. Thank you seller
I received the item securely packed and was delivered fast. Good quality and will definitely purchase again
This canopy is very good.The endurance board is also very thick.Highly recommended purchase
The canopy is of good quality, and the shipping package is strong and effective.It's nice.
1,002 Lazada user ratings
The item arrived earlier than expected, Though the courier mis hadled and caused deformation of the metal edge elements... The seller is ver…Read full reviewShow less
The item arrived earlier than expected, Though the courier mis hadled and caused deformation of the metal edge elements... The seller is very professional and understand the case, uppon knowing through chat, sent me the replacement parts free of charge and very fast in 1 day.. Thank you seller. I recommend for those looking for this product to buy in this seller... The item is so durable and easy to install... Seller's after sale support is very good. The item fit perfectly and beautifully to my garden wash area..
Ideal for DIY awning installation. Perfect for door and window protection from rain and sun. Sturdy and durable design, quality materials us…Read full reviewShow less
Ideal for DIY awning installation. Perfect for door and window protection from rain and sun. Sturdy and durable design, quality materials used. I have received the items in good condition. The parcel arrived ahead of schedule and was securely packed. A very nice product, exactly what I needed! COMPLETE I am extremely satisfied and will definitely order again from your Good Shop... Thank you so much , looking forward to my next purchase.
Ideal for DIY installing of awning for the door and windows in the house. Materials are sturdy and well made, value for the money. I have re…Read full reviewShow less
Ideal for DIY installing of awning for the door and windows in the house. Materials are sturdy and well made, value for the money. I have received the items in good condition. The parcel arrived ahead of schedule and was securely packed. A very nice product, exactly what I needed! COMPLETE I am extremely satisfied and will definitely order again from your Good Shop... Thank you so much , looking forward to my next purchase.
The package was already open and item is not fully secured. Polycarbonate sheet and frame is in good condition but the expansion bolt is sub…Read full reviewShow less
The package was already open and item is not fully secured. Polycarbonate sheet and frame is in good condition but the expansion bolt is substandard need to replace and buy another anchoring materials
Item delivered efficiently by Ninja courier and arrived well packaged . All components complete . Have not assembled as yet but will post ad…Read full reviewShow less
Item delivered efficiently by Ninja courier and arrived well packaged . All components complete . Have not assembled as yet but will post additional reviews once assembled and installed .
711 Lazada user ratings
Ang produkto ay sumusunod sa order, mabilis ang paghahatid, maganda ang packaging, walang pinsala, walang problema sa kalidad, madaling i-in…Read full reviewShow less
Ang produkto ay sumusunod sa order, mabilis ang paghahatid, maganda ang packaging, walang pinsala, walang problema sa kalidad, madaling i-install
Height adjustable to get a perfect shade, very good for blocking sun and rain, beautiful and elegant design.
thank you very much, seller your promise to deliver the missing items is complete...thank you very much
Good light transmittance, Provides excellent sun shade,
Prices are valid at publication and may change. Please refer to the product page for the latest price.
To obtain accurate weight data, always refer directly to the manufacturer’s specification sheets, product labels, or user manuals. Avoid estimating the weight based solely on the material names, such as assuming an aluminum frame is light enough to ignore or that a steel frame fits a generic weight class. Manufacturers provide exact weight specifications for their products, often broken down by linear meter or total unit weight. If you are assembling a custom system or buying components separately, keep a written log of each item’s verified weight as listed in its official documentation.
One of the most common oversights in DIY awning installation is failing to account for wet fabric weight. While dry acrylic, polyester, or vinyl-coated fabrics may feel relatively light, they can absorb and hold a significant amount of water during heavy downpours. Wet fabric can weigh twice or even three times as much as dry fabric, depending on the material’s weave and water-resistance ratings. Check the manufacturer’s guidelines for specific wet weight estimates or fabric density ratings under saturated conditions. If the manufacturer does not provide a wet weight specification, look for fabric absorption ratings to help guide your calculations, ensuring your brackets are never overwhelmed by a sudden tropical storm.
Factor in Environmental and Dynamic Loads
An awning does not exist in a vacuum; it is constantly subjected to natural forces that exert massive temporary loads on the mounting hardware. In the Philippines, these environmental and dynamic loads are often far greater than the static weight of the awning itself. The country regularly experiences intense monsoon seasons, heavy tropical depressions, and severe typhoons that bring both torrential rainfall and high-velocity winds. When wind blows against or under an awning, it acts like a sail, creating immense upward lift or downward pressure that the brackets must resist.
Heavy rainfall introduces another dynamic hazard: water pooling. If an awning is not tensioned correctly or is set at an insufficient slope, water can accumulate in the fabric folds. The weight of pooled water can quickly reach hundreds of kilograms, putting extreme localized stress on the brackets and the wall fasteners. To prevent catastrophic failure during these weather events, you must design your mounting system to withstand these localized environmental pressures.
Because wind and rain forces vary dramatically depending on your specific location, terrain, and building height, you should consult local building codes or a qualified structural engineer to determine the required environmental load allowances. Local municipal offices maintain specific wind zone maps and structural guidelines tailored to regional weather patterns. Avoid relying on generic online wind load calculators, as they often use simplified formulas that do not account for local microclimates, surrounding structures, or specific municipal safety mandates. A professional engineer can provide the exact pressure values required for safe installation in your area.
Step-by-Step Calculation for Minimum Bracket Capacity
With your physical component weights and environmental load allowances in hand, you can proceed to calculate the minimum load capacity required for each bracket. This mathematical process ensures that your hardware selection is grounded in physical reality rather than guesswork. Follow these steps carefully to establish a safe baseline for your installation.
Step 1: Calculate the Total Dead Weight. Begin by adding together the exact weights of all physical components you identified earlier. This includes the frame, dry fabric, roller tubes, motor, valance, and any integrated mounting profiles. If the manufacturer provides a specific wet fabric weight, use that value instead of the dry fabric weight to ensure your baseline accounts for rainy conditions. Let this combined sum represent your Total Dead Weight ($W_{dead}$).
Step 2: Add the Environmental Load Allowance. Take the environmental load value obtained from your local building codes or structural engineer. This value is typically calculated based on the surface area of your awning and the projected wind pressure for your region. Multiply the wind pressure by the total square area of the awning canopy to find the total dynamic force. Add this dynamic force to your Total Dead Weight to find the Combined Total Load ($L_{total}$).
Step 3: Divide by the Number of Brackets. Identify how many brackets you plan to install along the mounting surface. While a standard awning might use two brackets, wider or heavier models often require three, four, or more to distribute the weight evenly. Divide your Combined Total Load ($L_{total}$) by the number of planned brackets ($N$). This gives you the baseline load that each individual bracket must support under peak environmental conditions ($L_{bracket} = L_{total} / N$).
Step 4: Apply a Safety Margin. Never select a bracket that only meets the exact baseline load calculated in Step 3. You must apply a safety margin to account for material fatigue, minor installation imperfections, and unexpected weather extremes. Refer to the bracket manufacturer’s instructions or established engineering standards to determine the appropriate safety multiplier. A common professional standard is to apply a safety factor of 1.5 to 2.0, meaning you multiply your baseline bracket load by 1.5 or 2 to find the final required load capacity per bracket. Always defer to the manufacturer’s specified safety margins to keep your installation compliant and secure.
Verify Bracket Ratings and Wall Mounting Conditions
Calculating the required load capacity is only half the battle; you must also ensure that both the brackets you purchase and the wall you mount them to can actually handle these forces. Start by carefully reading the load rating labels, product packaging, or technical documentation of your chosen brackets. Verify that the manufacturer has certified the brackets to meet or exceed your calculated load capacity per bracket, paying close attention to whether the rating specifies shear load (downward force) or tension load (pull-out force).
The physical material of your wall plays a decisive role in the ultimate holding power of your awning brackets. Different wall materials require specific fastener types and installation methods to achieve their rated capacities. For example, mounting into solid concrete or structural steel provides exceptional holding power when paired with heavy-duty expansion anchors or sleeve anchors. Conversely, hollow concrete blocks, brick masonry, and wood studs have lower load thresholds and require specialized fasteners, such as toggle bolts, masonry anchors, or lag screws driven directly into the center of structural framing.
Before proceeding with any drilling, establish a strict stop condition. If you discover that your wall material is unknown, shows signs of structural degradation, or consists of crumbling mortar and cracked concrete, halt the installation immediately. Do not attempt to compensate for a weak wall by using larger fasteners or extra adhesive. A degraded wall cannot safely support the dynamic loads of an awning, and attempting to mount brackets under these conditions poses a severe safety hazard. Consult a qualified professional or structural contractor to assess the wall and reinforce the mounting area before continuing.
When to Hire a Professional for Awning Installation
While many small, residential awning projects can be completed as DIY tasks, certain scenarios demand the expertise of a professional installer or structural engineer. High-risk installations present complexities that go far beyond basic load calculations. If you are planning to install a large commercial-grade awning, mounting a system on an upper floor of a multi-story building, or dealing with an older structure with unknown structural integrity, DIY methods are highly discouraged.
Another clear indicator that you need professional assistance is missing or incomplete manufacturer weight data. If you have purchased a secondhand awning or a system without clear technical documentation, guessing the component weights or bracket ratings is extremely dangerous. Professional installers have the specialized tools, load-testing equipment, and structural knowledge to safely assess, reinforce, and secure heavy overhead structures.
Ultimately, improper load calculation or faulty installation can lead to catastrophic structural damage to your home, expensive repair bills, or severe personal injury to anyone standing beneath the awning. If you feel uncertain at any point during your calculations, fastener selection, or wall assessment, prioritizing safety by hiring a licensed professional is always the smartest investment.
Frequently Asked Questions (FAQ)
What happens if I use brackets with a lower load capacity than calculated?
Using brackets with an insufficient load capacity introduces immediate structural risks to your entire awning setup. Under the stress of daily dead weight or sudden wind gusts, under-rated brackets can experience permanent deformation, bending, or cracking. This physical failure often leads to the fasteners pulling out of the wall, causing the awning to sag or collapse entirely. Furthermore, using hardware that does not meet the minimum load requirements specified by the manufacturer typically voids your awning’s warranty, leaving you financially responsible for any resulting damage to your property.
Can I add more brackets to reduce the required load capacity per bracket?
Adding extra brackets can help distribute the total weight more evenly across your mounting surface, but it is not a universal solution for using under-rated hardware. While more brackets do divide the total load into smaller portions, this strategy only works if the awning’s frame is rigid enough to transfer the weight to those new contact points without bending or twisting. You must check the frame manufacturer’s maximum span specifications to ensure the frame can support additional bracket placements. If the frame is too flexible, the weight will not distribute evenly, leaving the original brackets to bear the brunt of the load regardless of how many extra brackets you install.
